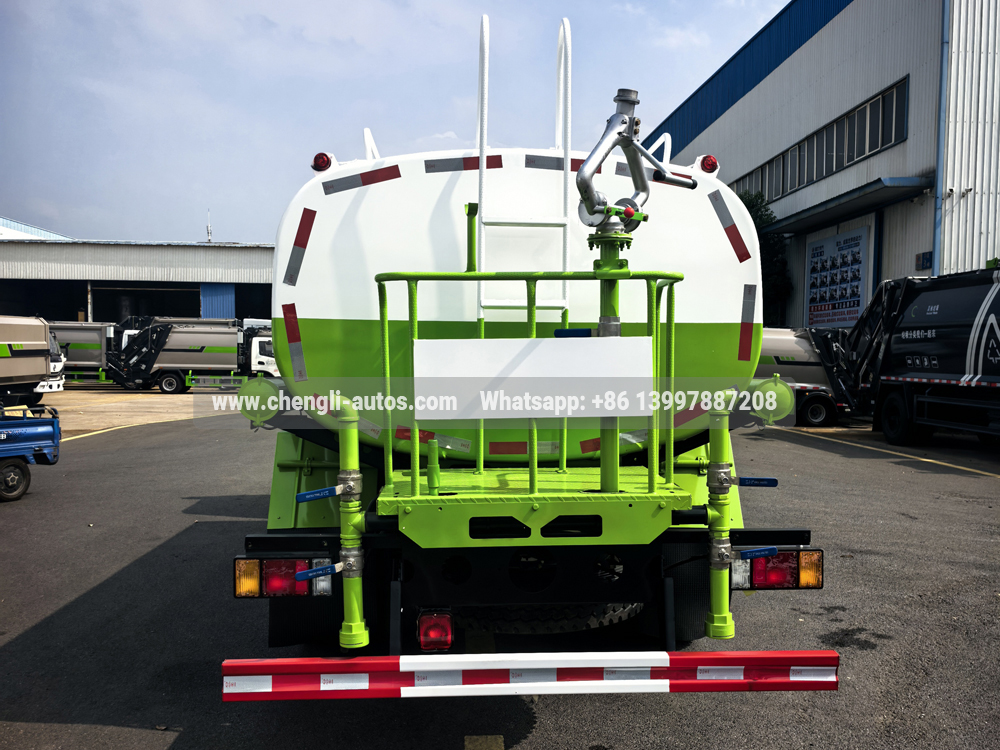

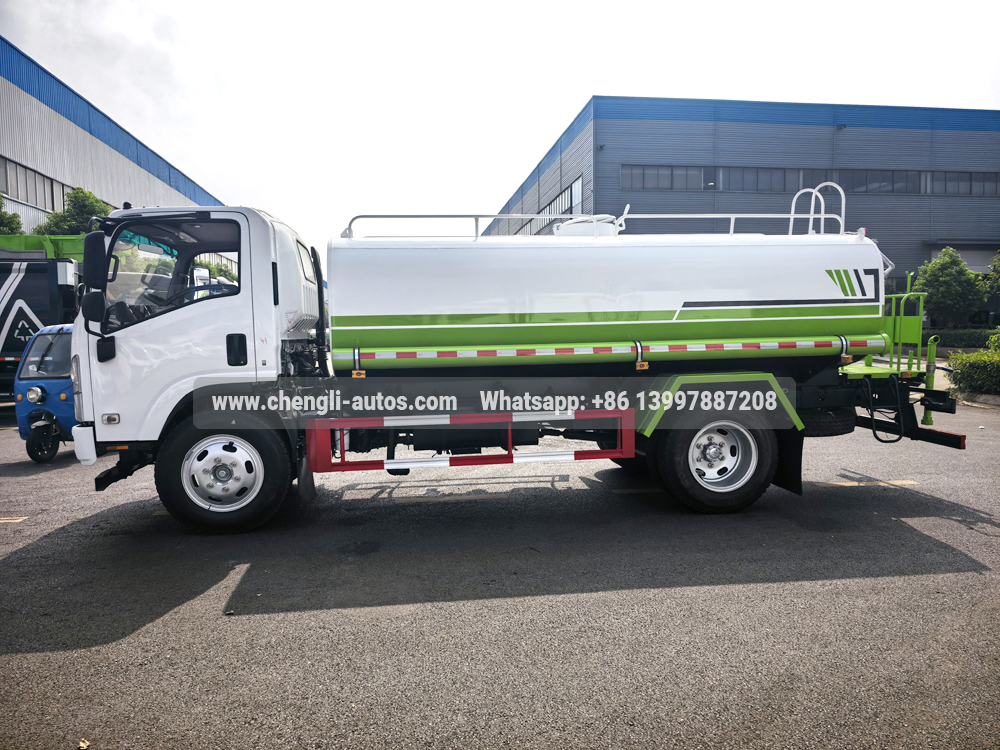

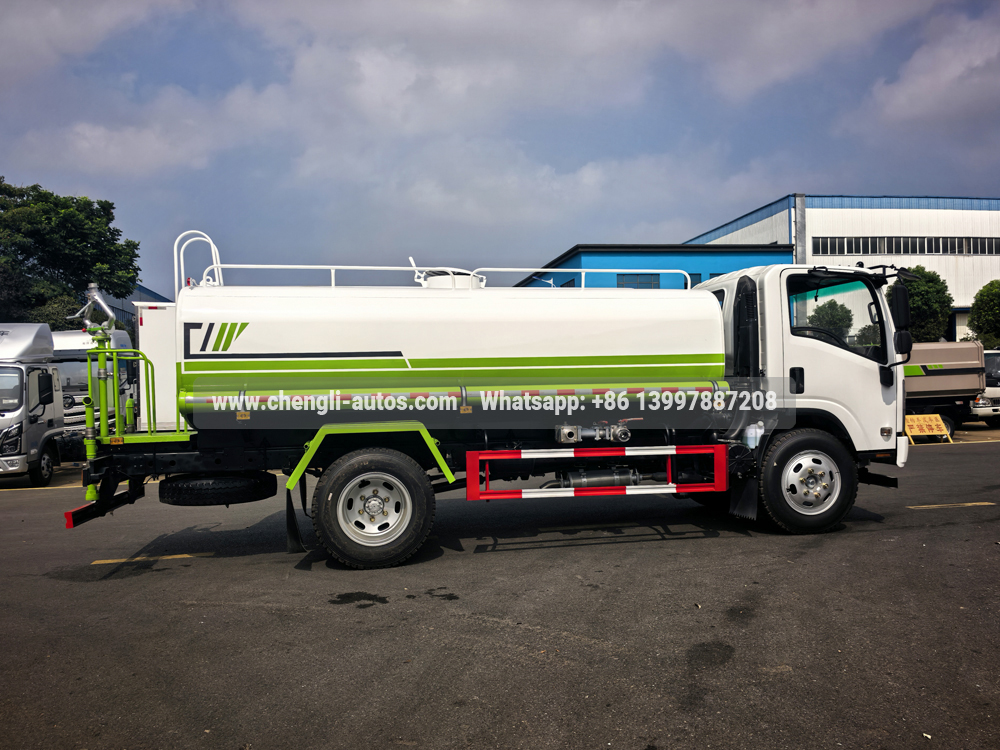

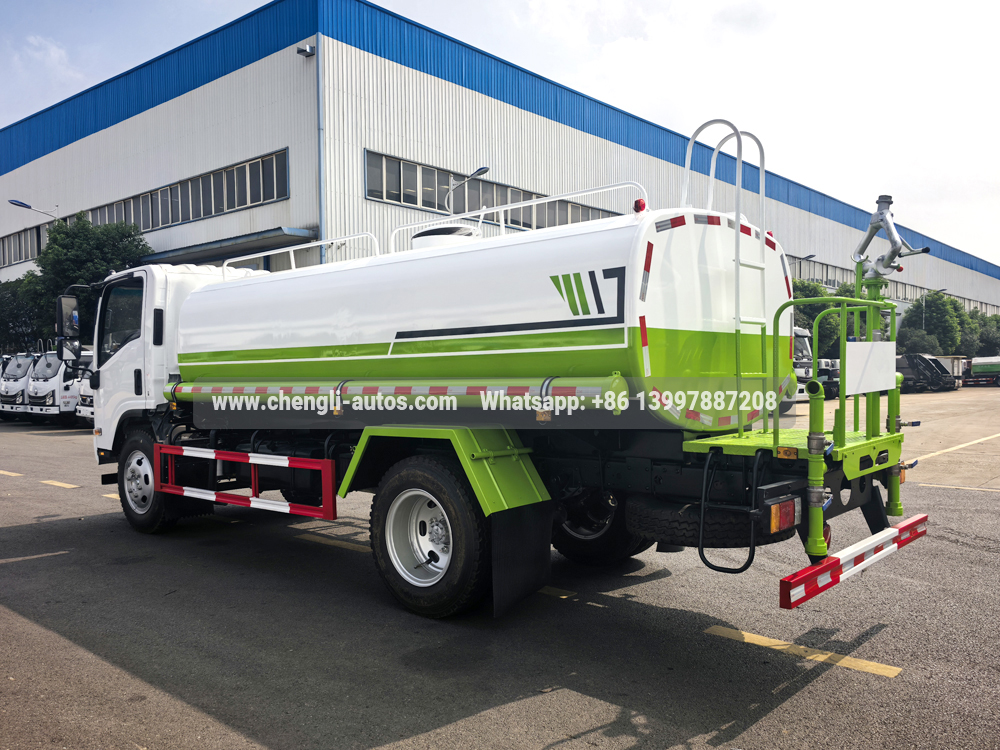

ISUZU ELF water spray tank truck, 700p 4x2 LHD chassis, Isuzu 190hp diesel engine, 6-shift manual gearbox, 9,000 Liters carbon steel tanker body, equipped with front and spray bar, water canon and fire coupling.
Drive form:
4x2Engine model:
4HK1-TCG61, 190HP, EURO 6Min. order quantity:
1 unitDelivery time:
20 days after we received the depositShipping :
40HQShipping port:
Any main port in ChinaISUZU 700P ELF 9,000 Liters Water spray tank truck
Application:
9CBM ISUZU ELF water tank truck (also called Water spray tank truck, Water sprinkler tank truck, Water bowser distributor truck, water sprinkling truck, water bowser truck, Water spraying truck), It is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.
CLW water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel.
Product Features:
ISUZU Water Sprinkler trcuk (9,000L) | ||
General | Vehicle Brand | CLW TRUCK |
Chassis Brand | ISUZU | |
Overall Dimension | 6800 * 2200 * 2450 mm | |
GVW / Kerb Weight | 12,000kg / 4,500kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU | |
Power | 190 HP (139 KW) | |
Displacement | 5193 ml | |
Emission Standard | Euro 6 | |
Chassis | Drive Type | 4X2 (left hand drive) |
Transmission | ISUZU MLD 6 speed levers with 1 reverse | |
Wheelbase/No. of axle | 3815mm / 2 | |
Tire Specification | 235/75R17.5 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Tank Capacity | 9,000 Liters |
Tank shape | Ellipse | |
Material | Carbon steel, 4mm | |
Water pump | China famous brand | |
Loading type | Self loading | |
Front / Rear spray bar | Standard | |
Water Canon | Standard | |
Fire coupling | Standard | |
Control | Manual (Optional air-valve operated) | |
Control panel | English or Your language | |
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
Optional | ** Tank body material could be 304 or 316 stainless steel or carbon steel with non-toxic treatment for transporing potable water safe for human body. | |
** Backup alarm can be equipped. | ||
** Camera can be equipped. | ||
** Operation language can be English or Appointed language. | ||
▲ Our History
Established in Sep. 2004,Hubei Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
▲ Our Certificate
The "CLW" brand is honored as the "Hubei Well-kown Trademark",Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection,Pressure Vessels certificated by A2 C2 C3 , ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd.tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for
Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.

▲ Overseas Market
Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.

▲ Production Equipment
Hubei Chengli Special Automobile Co., Ltd is equipped with 750 sets of large equipment and 16 assembly production lines. The testing methods are complete with various types of testing equipment such as universal hydraulic tensile testing machine, low-temperature impact testing machine, far-infrared high-frequency carbon and sulfur analyzer, four-ten thousand imported electronic balances, 1,200 times the gold Mirror microscope, digital ultrasonic flaw detector, industrial X-ray flaw detector, imported thickness gauge, water pressure, pneumatic equipment. Hubei Chengli can carry out various physical and chemical tests, pressure tests, non-destructive testing of A2, C2 pressure vessel projects and equipped with heat treatment and flaw detection room. There are more than 30 senior and middle-level testing qualification personnel,national and provincial special equipment inspection experts for technical guidance and quality supervision and inspection, which guarantees the reliability and safety of trucks.

▲ Our Service
Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.

▲ Welcome to visit our company in Suizhou city, hubei province,China
