ISUZU NPR 700P wrecker tow truck, ISUZU 4x2 chassis, ISUZU 6-shift manual gearbox, 190HP 5193cc diesel engine, 4475mm wheel base, this wrecker towing truck is a road rescue vehicle, also known as a trailer, road rescue vehicle, or towing vehicle. It has multiple functions such as lifting, pulling, and lifting. The clearing vehicle is mainly used for road malfunctioning vehicles, urban illegal vehicles, and emergency rescue. Obstacle clearing vehicles are mainly classified into: trailer connected type, trailer separated type, one trailer one type, flat one trailer two type, multifunctional obstacle clearing vehicle, and hydraulic automatic clamping type. Divided by traction tonnage: 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, 80 tons.
Drive form:
4x2Engine model:
B190 33crane type:
Straight arm or folding armFlatbed capacity:
4000 kgCrane capacity:
5000 kgLead time:

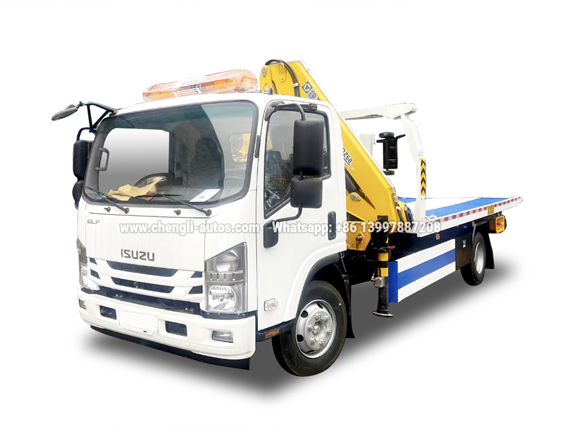

20 working daysISUZU NPR rescue wrecker truck (with 5 Ton crane)
Application:
Isuzu NPR road rescue truck with crane (also called Rescue truck, wrecker tow truck, flatbed with crane, wrecker truck with crane, slide flatbed bed, breakdown recovery tow truck, which is used to handle various scenarios, such as towing inoperable broken - down vehicles, lifting overturned vehicles, and supporting severely damaged accident vehicles.
Product Features:
ISUZU rescue wrecker truck (with 5 Ton crane) | ||
General | Vehicle Brand | CLW |
Chassis Brand | ISUZU | |
Overall Dimension | 8000 x 2500 x 2850 mm | |
GVW / Kerb Weight | 11,500 kg / 6,500 kg | |
Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | With air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | ISUZU | |
Power | 190HP (139 KW) | |
Displacement | 5193 CC | |
Emission Standard | Euro VI | |
Chassis | Drive Type | 4X2, left hand drive |
Transmission | Manual, ISUZU MLD 6-forward gears & 1 reverse, no overhaul within 500,000km | |
Wheelbase/No. of axle | 4475 mm / 2 | |
Tyre Specification | 8.25R20 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Flatbed Dimensions | 5500x2250mm |
Load Capacity | 5 Tons | |
Towing Capacity | 3 Tons | |
Gradient of flat board | 10 degree | |
Control | Control panel on both side | |
Wire rope | 21 m | |
Max towing speed | 40 km/h | |
Crane type | 4 telescopic arms | |
Max. loading of crane | 5000 kg | |
Equipment | 2 units of towing wheel, 1 unit of 4 ton winch, 1 unit of steel wire tope, 1 unit of spare tire, 1unit of jack, 1 unit of tire sleeve, 4 units of wrecker binding, 1 unit of alarm lamp. | |
▲ Our History
Established in Sep. 2004,Hubei Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB（14 millions US Dollars) and total capital 6,000,000,000（840 millions US Dollars).
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
▲ Our Certificate
The "CLW" brand is honored as the "Hubei Well-kown Trademark",Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection,Pressure Vessels certificated by A2 C2 C3 , ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd.tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for
Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.
▲ Overseas Market
Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
▲ Production Equipment
Hubei Chengli Special Automobile Co., Ltd is equipped with 750 sets of large equipment and 16 assembly production lines. The testing methods are complete with various types of testing equipment such as universal hydraulic tensile testing machine, low-temperature impact testing machine, far-infrared high-frequency carbon and sulfur analyzer, four-ten thousand imported electronic balances, 1,200 times the gold Mirror microscope, digital ultrasonic flaw detector, industrial X-ray flaw detector, imported thickness gauge, water pressure, pneumatic equipment. Hubei Chengli can carry out various physical and chemical tests, pressure tests, non-destructive testing of A2, C2 pressure vessel projects and equipped with heat treatment and flaw detection room. There are more than 30 senior and middle-level testing qualification personnel,national and provincial special equipment inspection experts for technical guidance and quality supervision and inspection, which guarantees the reliability and safety of trucks.
▲ Our Service
Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
