Vacuum trucks，also named as liquid vacuum tanker, liquid sewage tanker truck. Liquid vacuum trucks are specialized vehicles used to collect and transport various types of liquid waste. These liquid vacuum trucks have a vacuum system that sucks up the liquid waste from tanks, drainage systems, and other sources.
Tank capacity:
10 CBMOverall dimension:
7650*2550*3500 mmWheel base:
4500 mmEngine power:
4HK1-TCG60 205HPGear box:
MLD 6-shift manual transmissionRemarks:
Customized installed Italy brand MORO, BP vacuum pumpThe ISUZU GIGA 10000L Sewage Suction Truck is a reliable 4×2 vacuum tanker vehicle built for efficient waste collection and transportation. Mounted on a Isuzu chassis with a 10m³ carbon steel vacuum tank, it delivers strong vacuum performance, fast suction speed and simple operation. Powered by a 205 HP Euro 6 diesel engine matched with a 6-speed gearbox, this truck features hydraulic tank tipping and hydraulically operated rear door. It comes fully equipped with standard accessories, while optional stainless steel tank, imported vacuum pump and internal anti-rust coating are available to meet diverse project requirements.

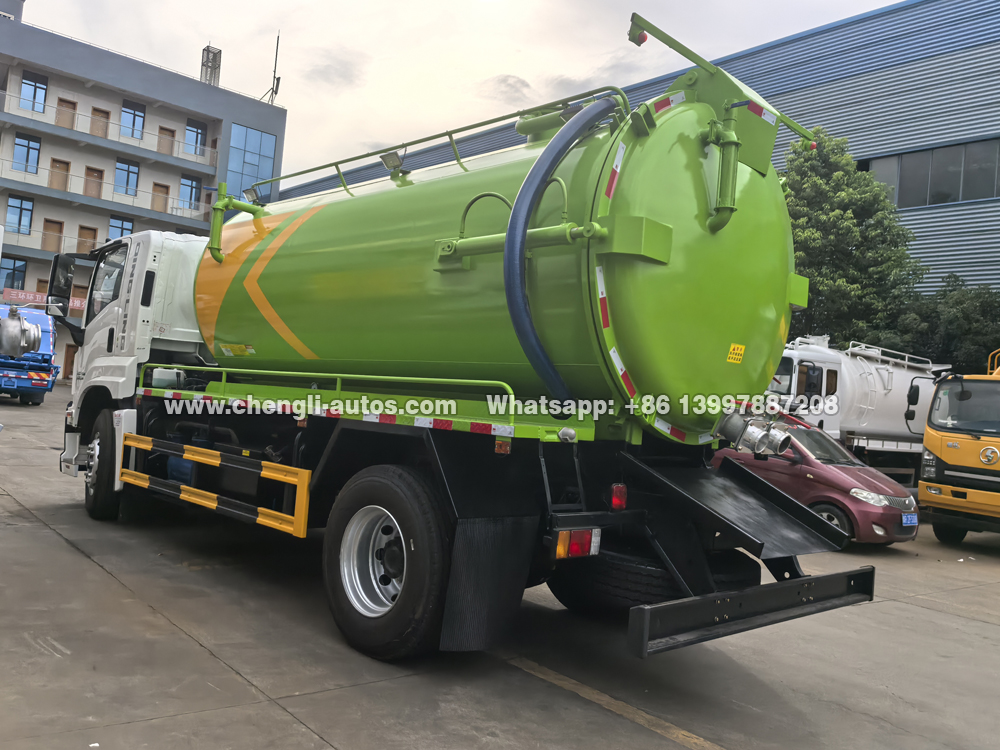

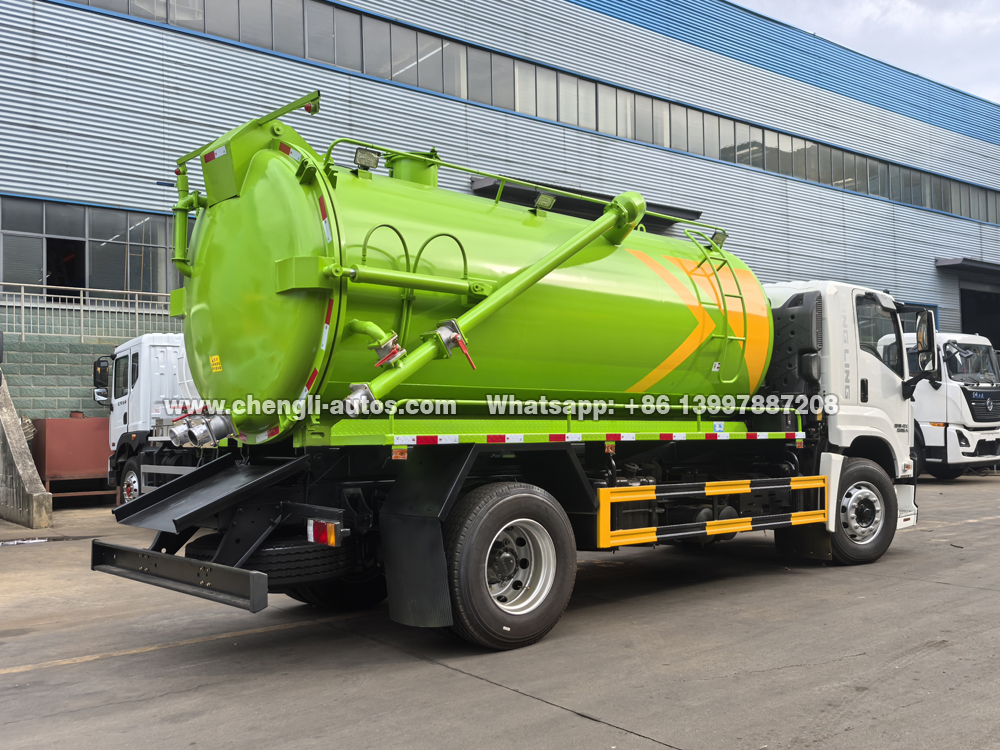

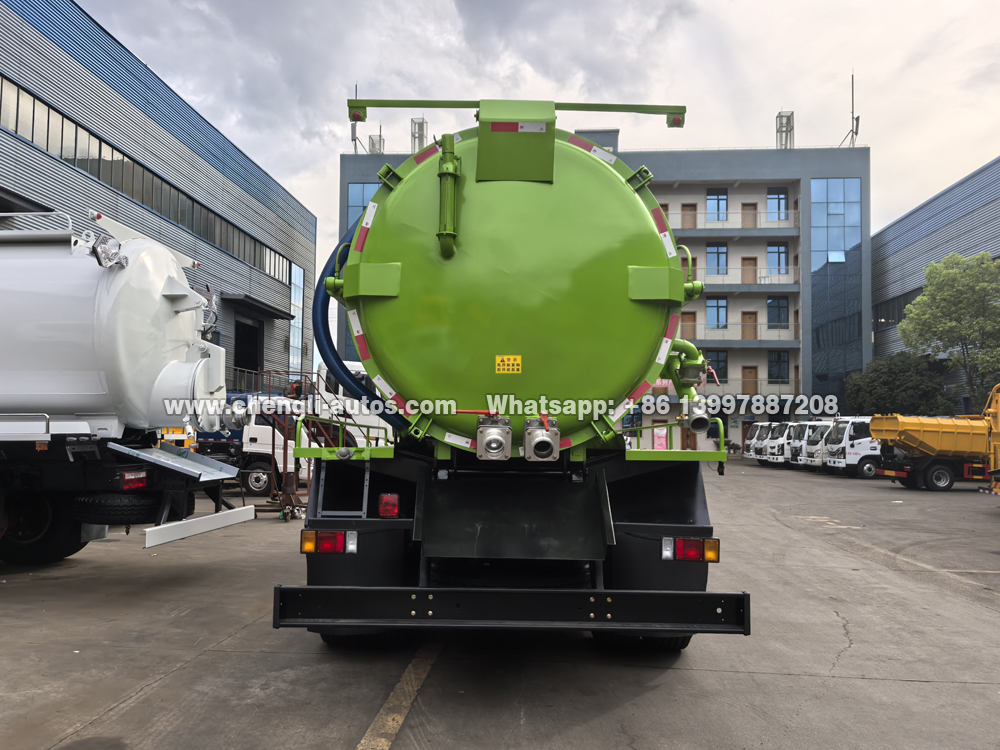

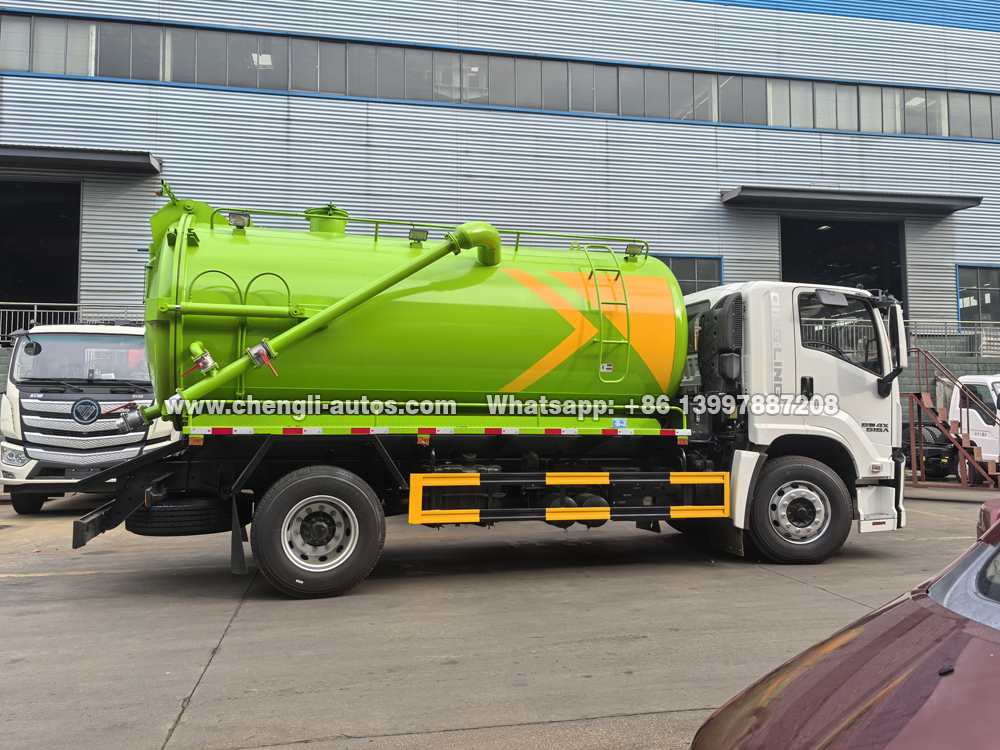

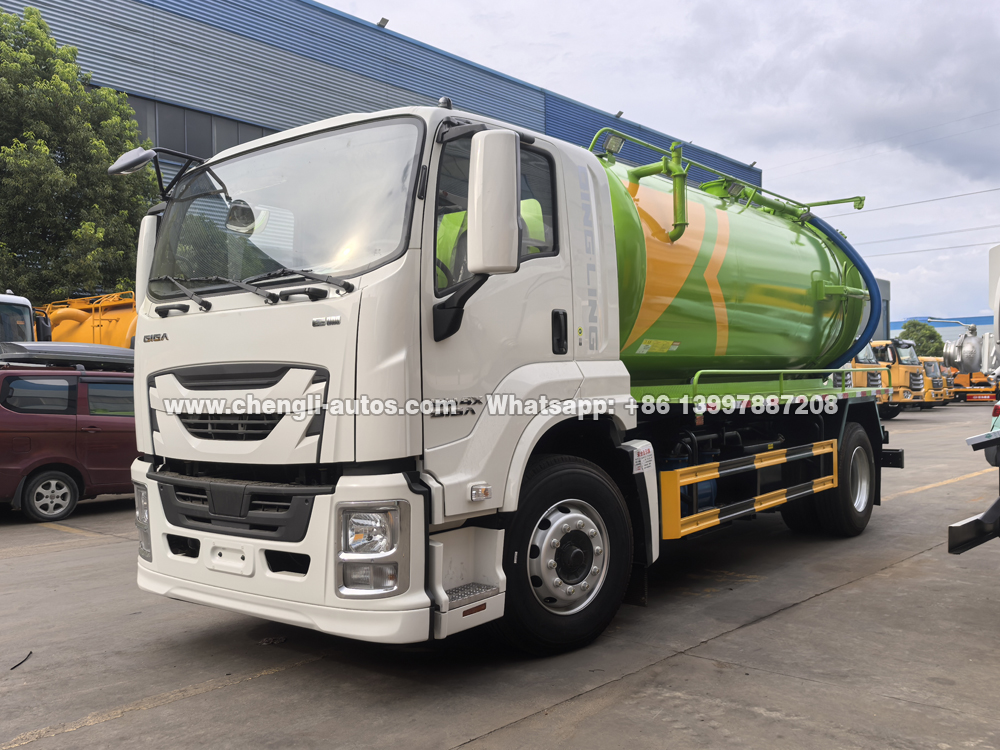

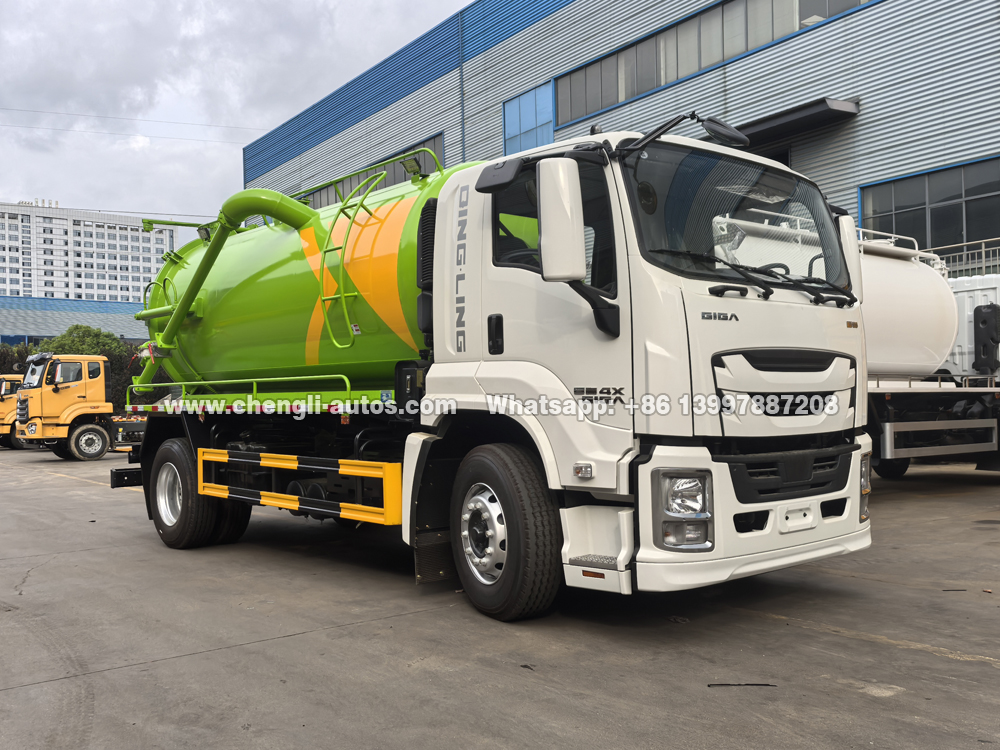

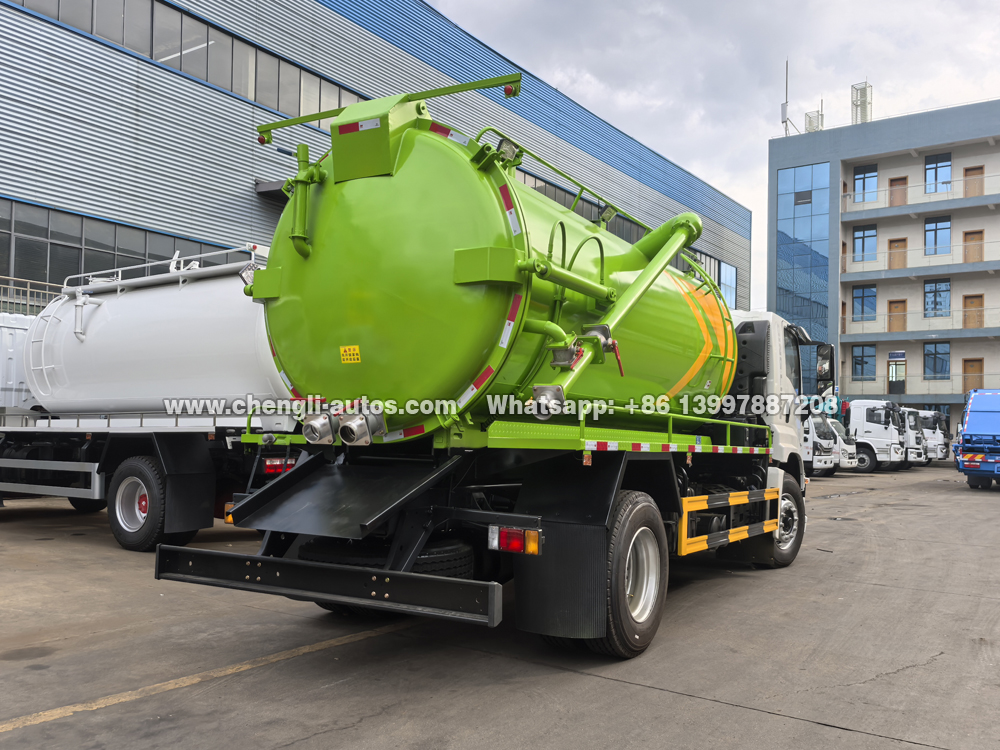

ISUZU GIGA 4x2 vacuum sewage suction truck 10CBM
_______________________________________________________________________________________________________
CLW truck factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Product Features:
---- Easy operation and easy maintenance.
ISUZU GIGA 10,000L vacuum sewage suction truck Vehicle Description Overall dimensions 7650*2550*3500 mm GVW 18000kg Curb weight 8400kg Sewage tank (m3) 10 Drive system 4*2 Chassis Description Chassis brand ISUZU GIGA Steering LHD Cab ISUZU GIGA 4X cabin with sleeper, allowable 3 passengers, central locking system, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with air conditioner Wheelbase 4500 mm Tire specification 295/80R22.5 16PR Tire quantity 6 tires and 1 spare tire Engine Engine model 4HK1-TCG60 Emission level EURO VI Displacement 5.193 L Horse power 205 HP Fuel Diesel Gear box Model MLD Number of gears 6 speed Brake system Air break Axle Front 6.3T Rear 13T Fuel tanker Type Aluminum Capacity 400L Tanker Description Tanker Capacity 10,000 Liters Material 6mm thickness, high quality carbon steel Structure Welding, vacuum tank, Cylindrical Pump Type Water circulation pump Flow rate 15 (m³/m) Rating speed 800~1200(r/min) Shaft power 30(kw) Features Low speed, low fuel consumption, low noise, high vacuum, high efficiency Pipe Suction and discharge pipe Special function Suction time ≤ 3min, effective suction range ≥ 9, Max vacuum degree ≤ 18 KPa, dump angle ≥ 45° Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. Optional configuration Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank
▲ Our History
Established in Sep. 2004,Hubei Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB（14 millions US Dollars) and total capital 6,000,000,000（840 millions US Dollars).
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
▲ Our Certificate
The "CLW" brand is honored as the "Hubei Well-kown Trademark",Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection,Pressure Vessels certificated by A2 C2 C3 , ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd.tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for
Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.
▲ Overseas Market
Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
▲ Production Equipment
Hubei Chengli Special Automobile Co., Ltd is equipped with 750 sets of large equipment and 16 assembly production lines. The testing methods are complete with various types of testing equipment such as universal hydraulic tensile testing machine, low-temperature impact testing machine, far-infrared high-frequency carbon and sulfur analyzer, four-ten thousand imported electronic balances, 1,200 times the gold Mirror microscope, digital ultrasonic flaw detector, industrial X-ray flaw detector, imported thickness gauge, water pressure, pneumatic equipment. Hubei Chengli can carry out various physical and chemical tests, pressure tests, non-destructive testing of A2, C2 pressure vessel projects and equipped with heat treatment and flaw detection room. There are more than 30 senior and middle-level testing qualification personnel,national and provincial special equipment inspection experts for technical guidance and quality supervision and inspection, which guarantees the reliability and safety of trucks.
▲ Our Service
Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
▲ Welcome to visit our company in Suizhou city, hubei province,China
