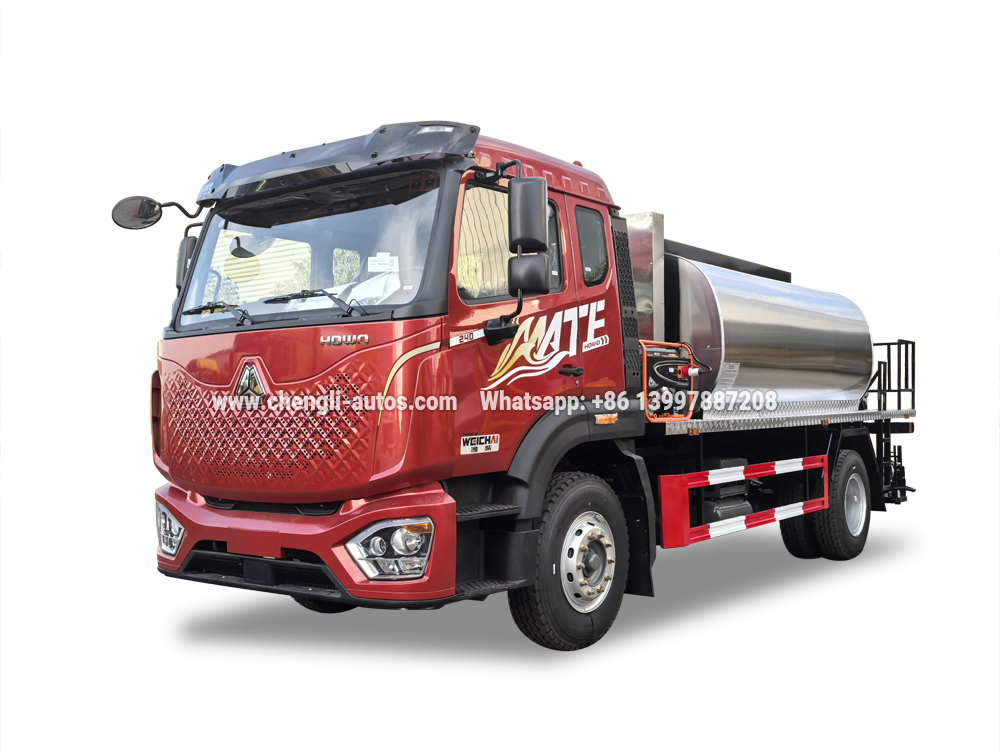

Sinotruk Howo Asphalt Distrbutor Truck (9 tons)

Howo 9 tons Asphalt distributor truck, Howo Mate 4x2 chassis, WP4.6NQ240E62 240hp diesel engine,  8-shift manual gearbox, 10,00R20 stainless tire, asphalt tank 9000L, asphalt pump QGB450, max. spring width 6m,  spraying nozzle 48 pieces, Hydraulic motor 05-130-BD31, Bitimen pump QGB950, Proportional valve EFBG-03-160-HF, Control system PLC control, Sparying medium Hot emulsified asphalt (including SBS and rubber-modified types).

  • Asphalt tank capacity:

    9000 Liters
  • Engine model:

    WP4.6NQ240E62
  • Hydraulic motor:

    05-130-BD31
  • Hydraulic pump:

    CBQ550-L
  • Bitimen pump:

    QGB950, flow rate:950 L/min
  • Asphalt nozzles:

    36 pcs or 48 pcs
  • Asphalt width:

    4.5 to 6 meters

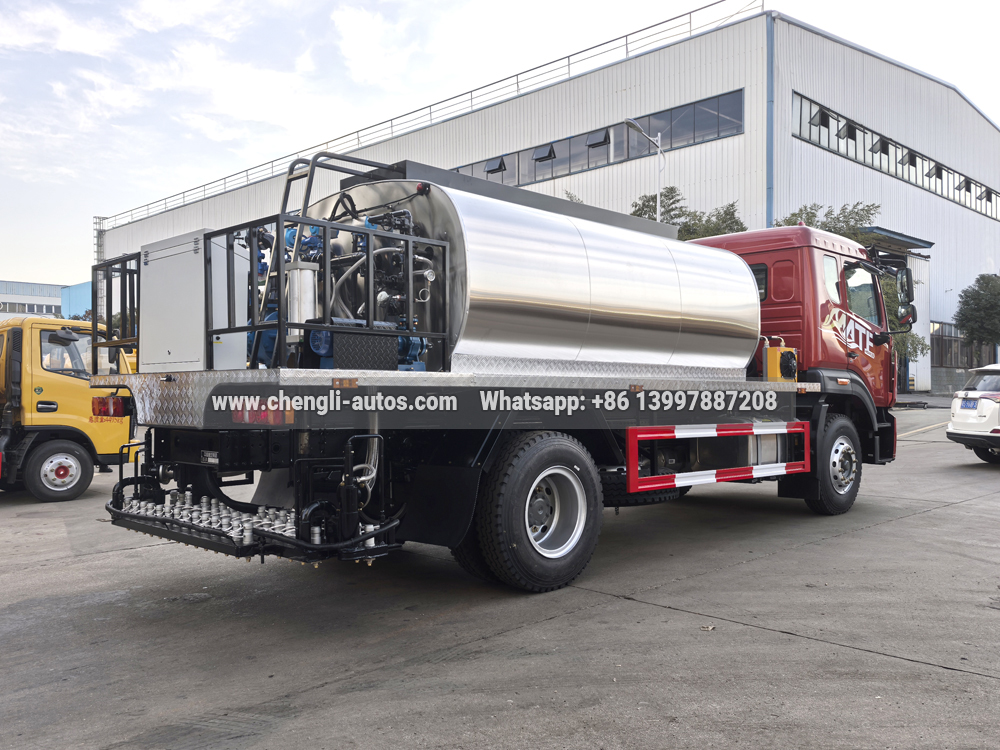

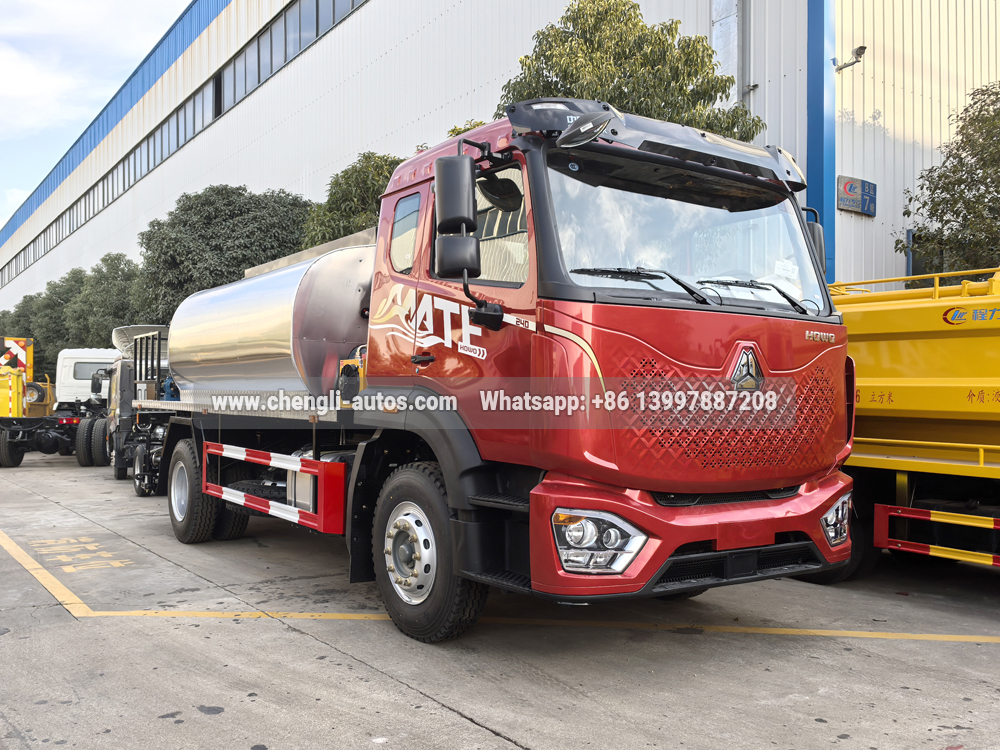

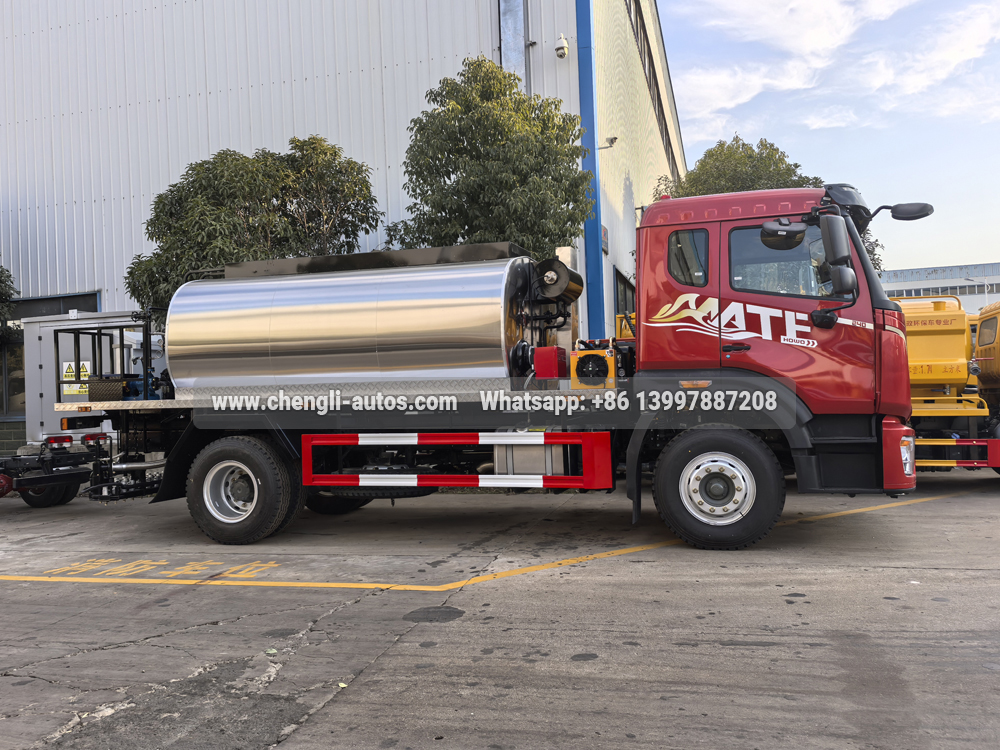

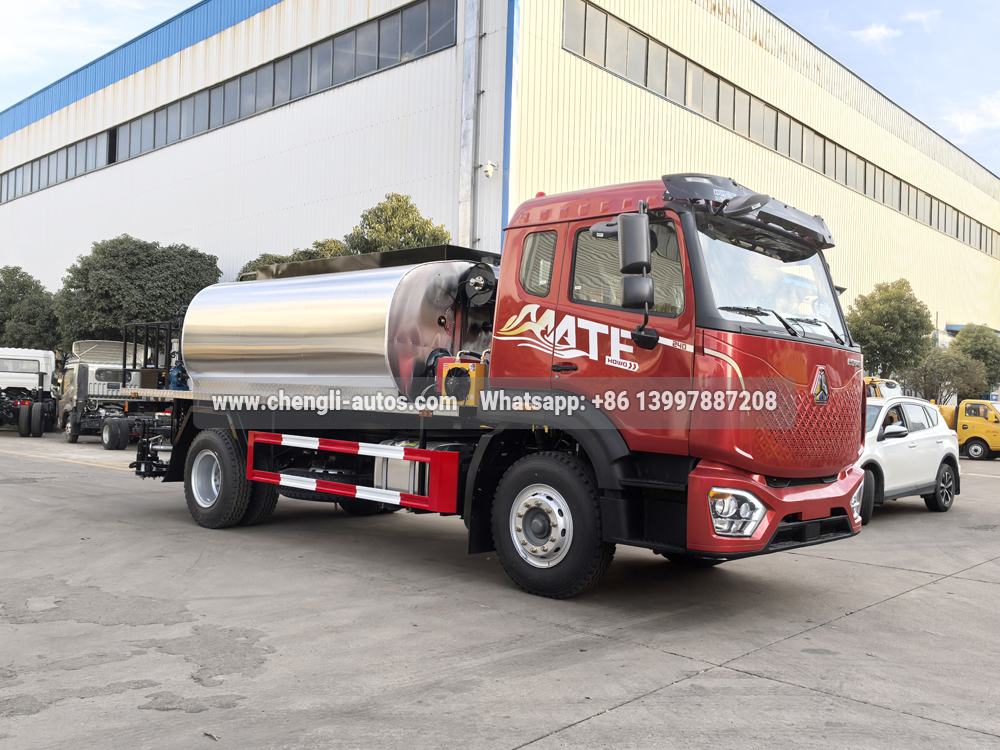

HOWO 4X2 Asphalt distratutor truck (9 tons)


Application:

Howo 9m3 asphalt distributor truck, (also called Truck Mounted Asphalt Sprayer, Bitumen Asphalt Distributor Spraying Truck,  Road Paving Machinery, Spraying Bitumen Distributor Truck, road maintenance truck)  asphalt spraying truck is a professional road maintenance vehicle designed for precise and efficient application of bitumen in various construction environments. It is widely used for surface dressing, tack coat, and prime coat applications on highways, urban roads, rural routes, and airport runways.


Product Features:

---- HOWO chassis ensures perfect performance on driving.
---- Weichai engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- It can be customized according to customer requirements


HOWO Asphalt Distributor truck (9 tons)

General

Vehicle Brand

CLW

Chassis Brand

HOWO

Overall Dimension

8100×2550×3150 mm

GVW / Kerb Weight

18,000 kg / 8,900 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

WP4.6NQ240E62 (177 KW)

Displacement

4580 CC

Emission Standard

Euro VI

Chassis

Drive Type

4X2, left hand drive

Transmission

Manual,10-forward gears & 2 reverse

Wheelbase/No. of axle

4500 mm / 2

Tyre Specification

10. 00R20 18PR

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Tank interior

Carbon steel

Insulation material

50 mm rock wool insulation

Tank exterior

1mm stainless steel

Hydraulic motor

05-130-BD31

Hydraulic pump

CBQ550-L

Bitimen pump

QGB950, flow rate:950 L/min

Proportional valve

EFBG-03-160-HF

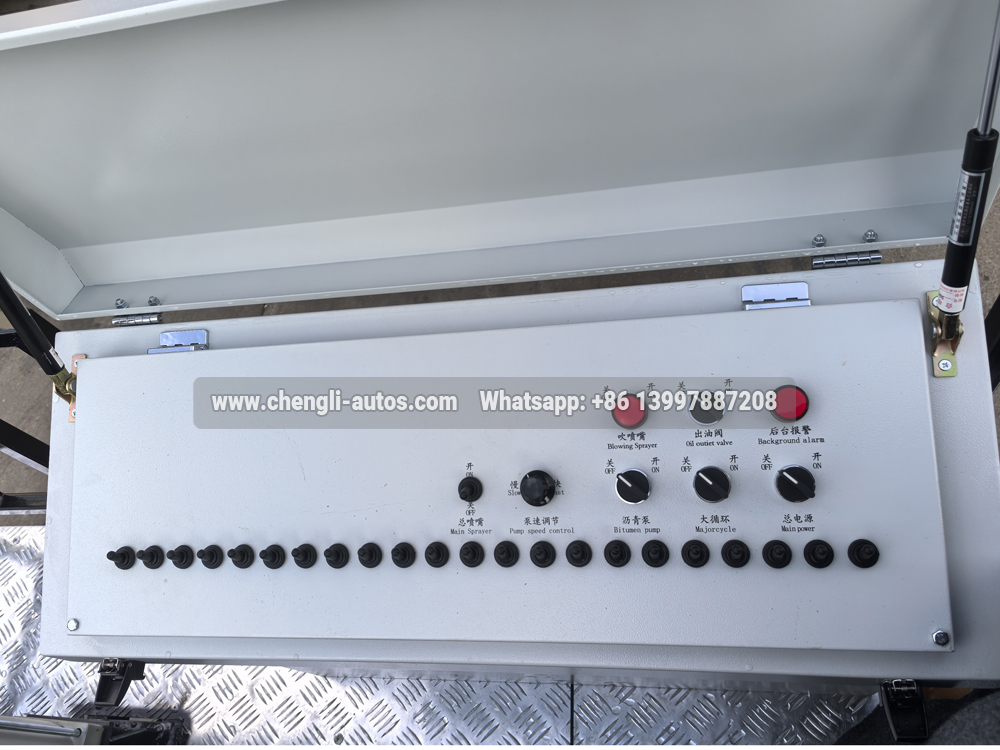

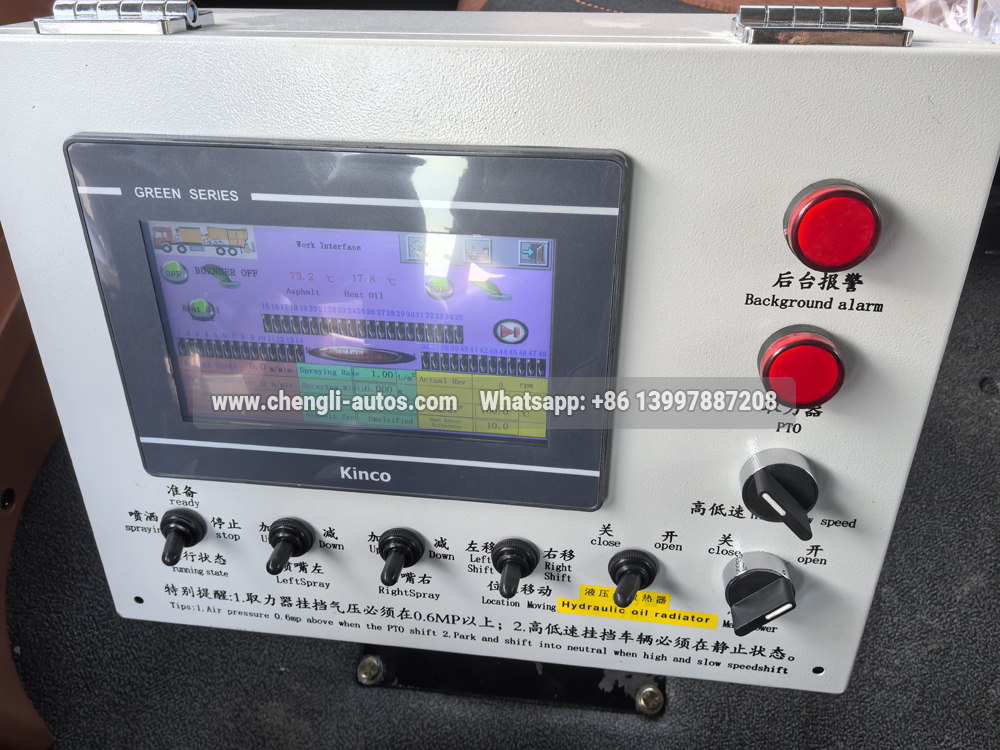

Control system

PLC control

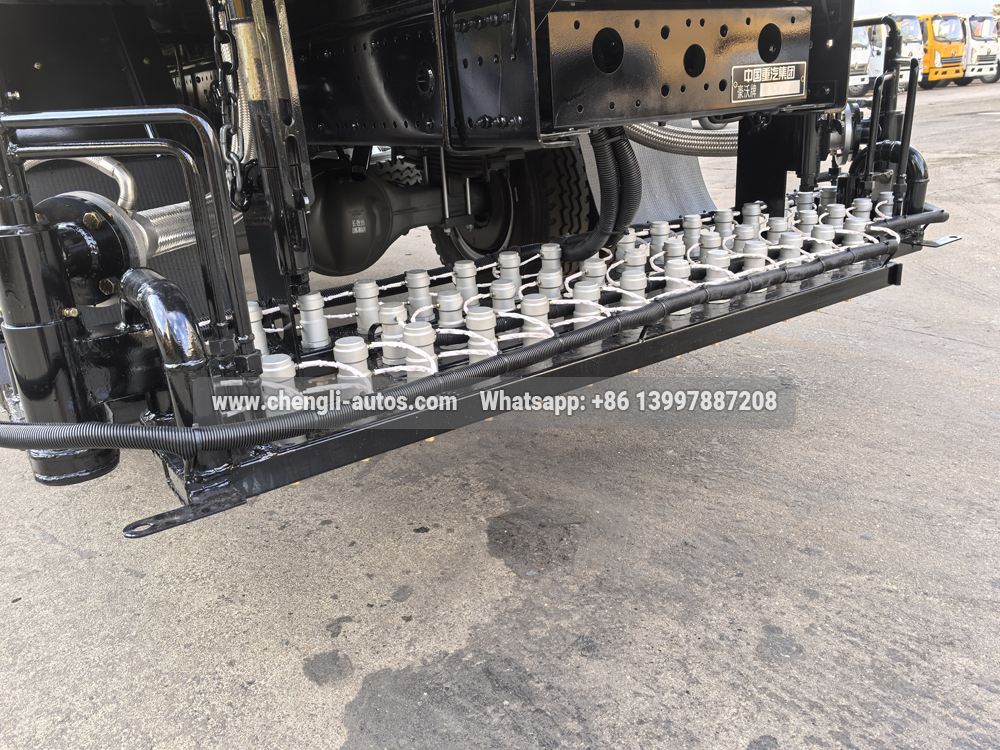

Asphalt nozzles

36 pcs or 48 pcs

Burner

2 x riello G20(Italy), 100,000 kcal/h each

Thermal oil pump

RY40-25-160

Spray width

4.5 to 6 meters

Asphalt spraying rate

0.2 to 2.5 L/m2

Sparying medium

Hot emulsified asphalt (including SBS and rubber-modified types)

Optimum constuction speed

3 ~ 6 km / h
