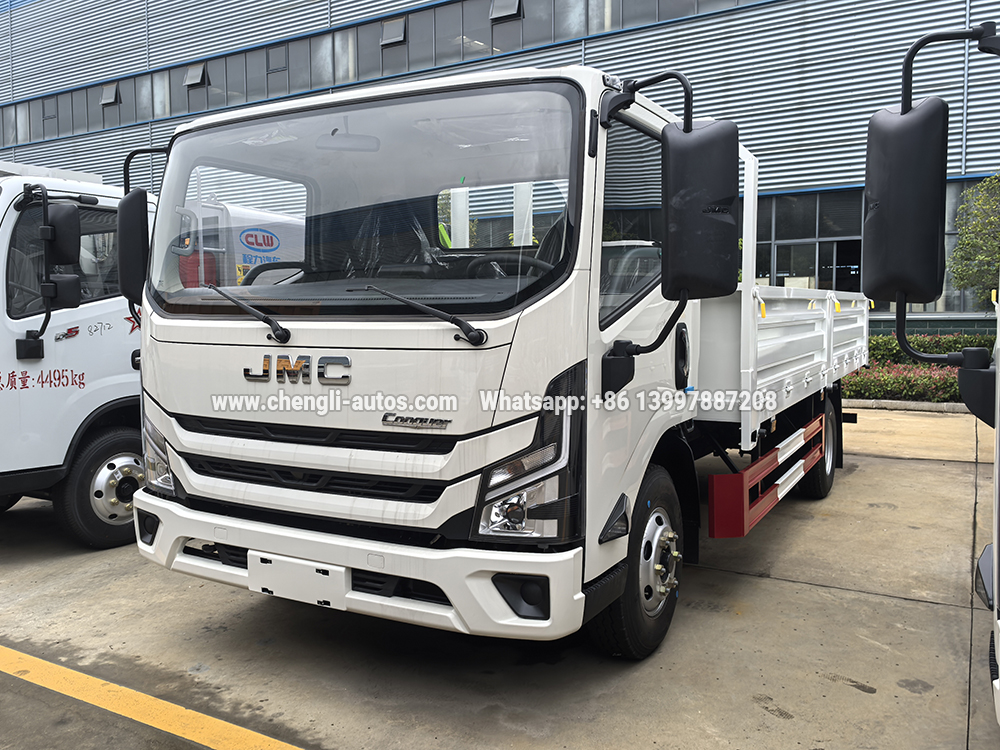

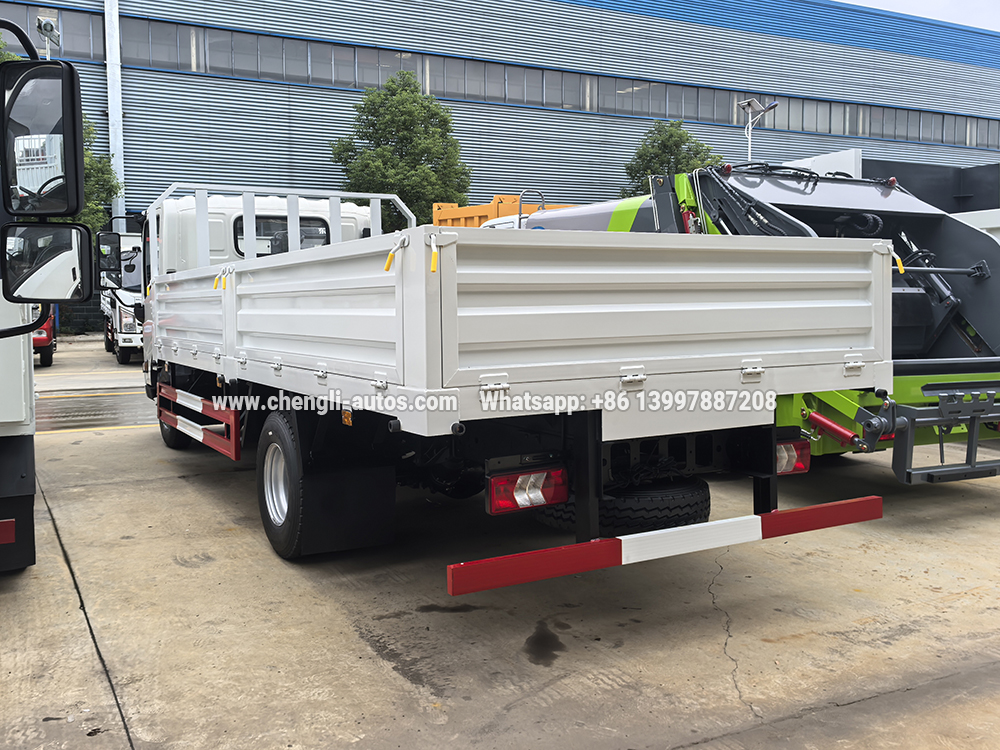

JMC T822 Carrying Plus Light Cargo Truck(3~5T)

JMC Carrying Plus T822 light-duty flatbed truck, powered by JX493ZQ4A Euro 3 emission standard diesel engine, supporting a standard payload of 3–5 tons, for transporting construction materials, and small equipment and other general goods.
Customization is available for flatbed size, side rail height, anti-corrosion coating, and safety features to meet your specific transport needs.

  • Model:

    JMC Carrying Plus T822
  • Engine:

    JX493ZQ4A
  • Displacement:

    2771 cc
  • Cabin:

    Single cabin/double cabin(Optional)
  • Wheelbase:

    2800/3360 mm (Optional)
  • Steering wheel:

    LHD / RHD (Optional)
  • MOQ:

    1 unit
  • Lead time:

    20 days after received the deposit
  • Loading port:

    Any port in China
  • Payment term:

    T/T, L/C

JMC Carrying Plus T822 Light Flatbed Truck (also called Carrying Plus cargo truck, Japan Logistics delivery vehicle, General cargo light truck).


      Application:

JMC Carrying Plus T822 is a reliable, fuel-efficient light-duty flatbed truck built for urban distribution, construction material hauling, and general cargo transport. Designed with a reinforced chassis and high-strength steel flatbed, it delivers stable performance, low operating costs, and easy maneuverability for both short-haul and mid-range logistics tasks.


Flatbed transport cargo truck use good quality carbon steel. As for cargo trucks, driving type could be 4x2, 4x4, 6x4, 6x6, 8x4, etc.


     Key Features:

✅ Durable Flatbed Design

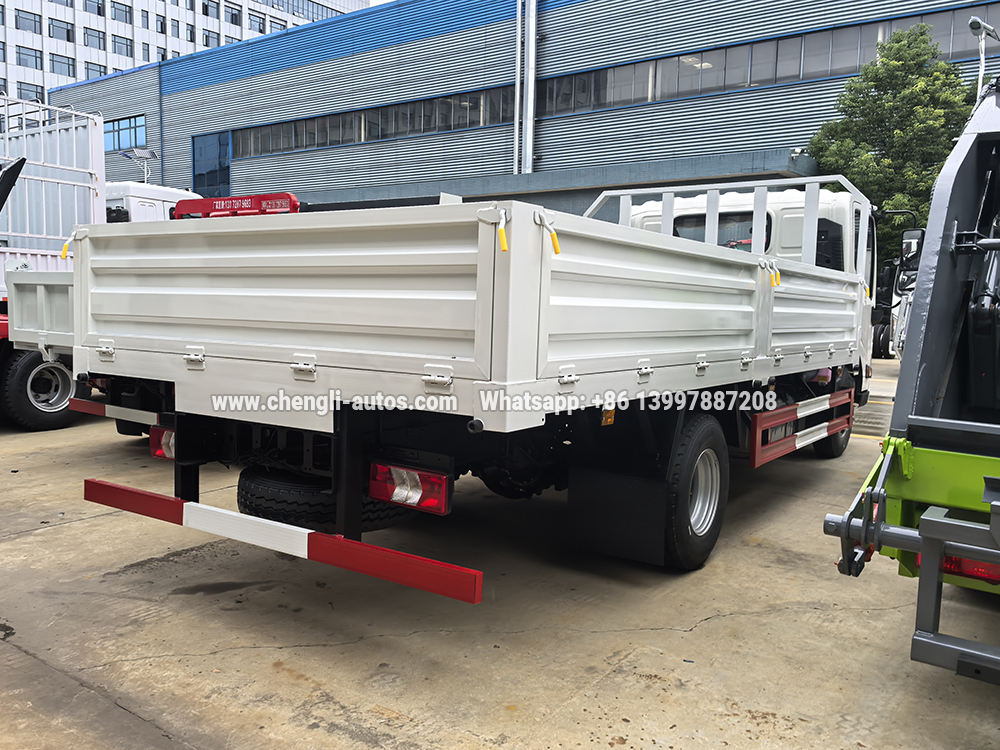

High-strength steel flatbed with anti-slip floor and reinforced side rails, ideal for loading construction materials, pallets, and machinery parts.
✅ Reliable Powertrain
Proven JMC diesel engine with low fuel consumption, easy maintenance, and long service life.

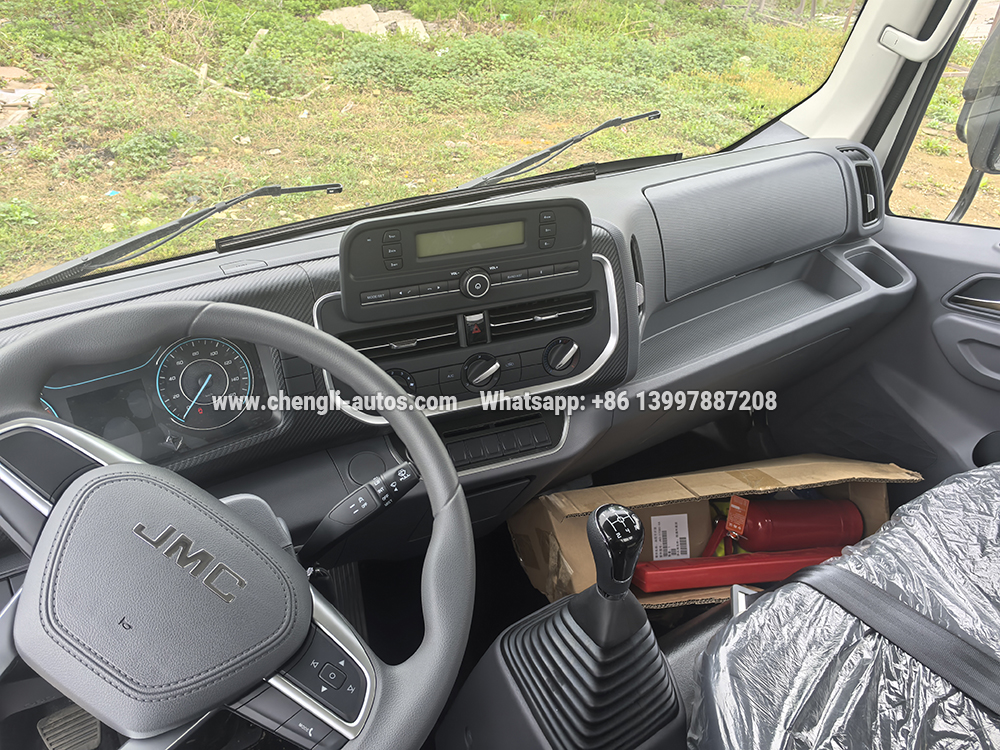

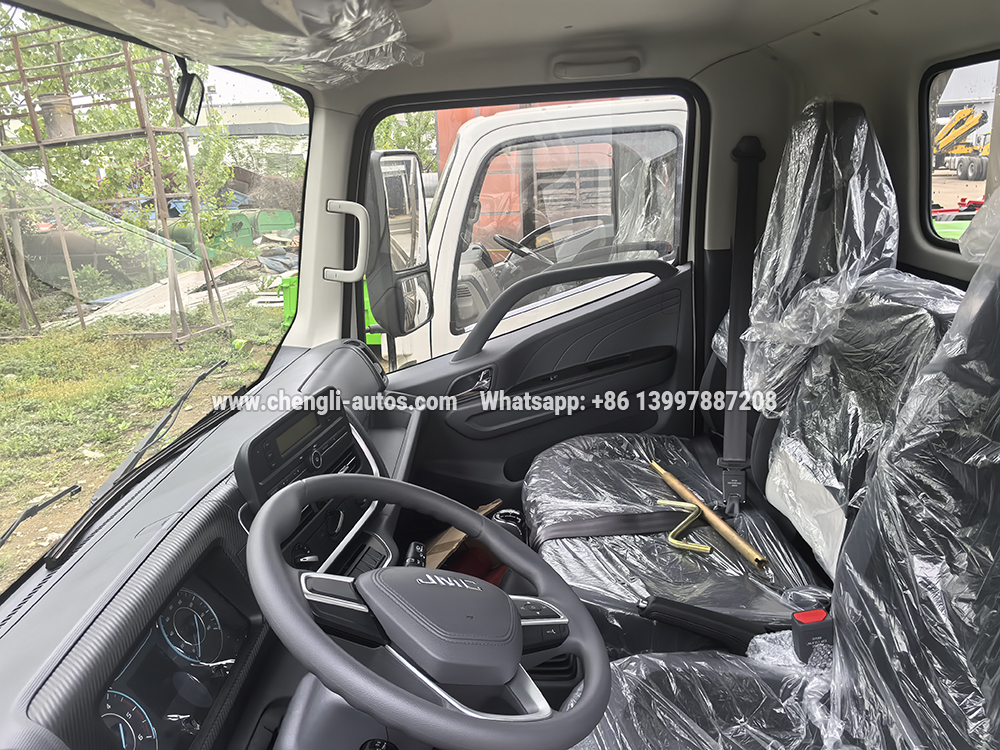

✅ Driver-Friendly Cabin
Ergonomic single cab with hydraulic steering, original AC, and large windshield for improved visibility and comfort.
✅ Flexible Applications
Perfect for urban delivery, logistics, construction sites, and small business transport needs.
✅ Cost-Effective Operation
Low maintenance cost, high fuel efficiency, and strong resale value make it a popular choice for fleet operators and individual users.



    Specifications:

JMC T822 Carrying Plus cargo truck 3~4tons

Vehicle Main Dimensions

Overall dimensions (L x W x H)

5500/5990*1980*2200 mm

Wheel base

Optinal 2800/3360/3815 mm

Wheel track  (front/rear)

1504/1425 mm

Approach/Departure angle

24/16 °

Weight in KGS

Curb Weight

1860 kg

payload

5900 kg

Front axles loading capacity

1x2500 kg

Rear axles loading capacity

1x3600 kg

Max. driving speed

90 km/h

Engine

Brand

Isuzu

Model

JX493ZQ4A

Type

4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power

92hp (68kw)

Displacement

2771 CC

Emission standard

Euro 2

Gearbox

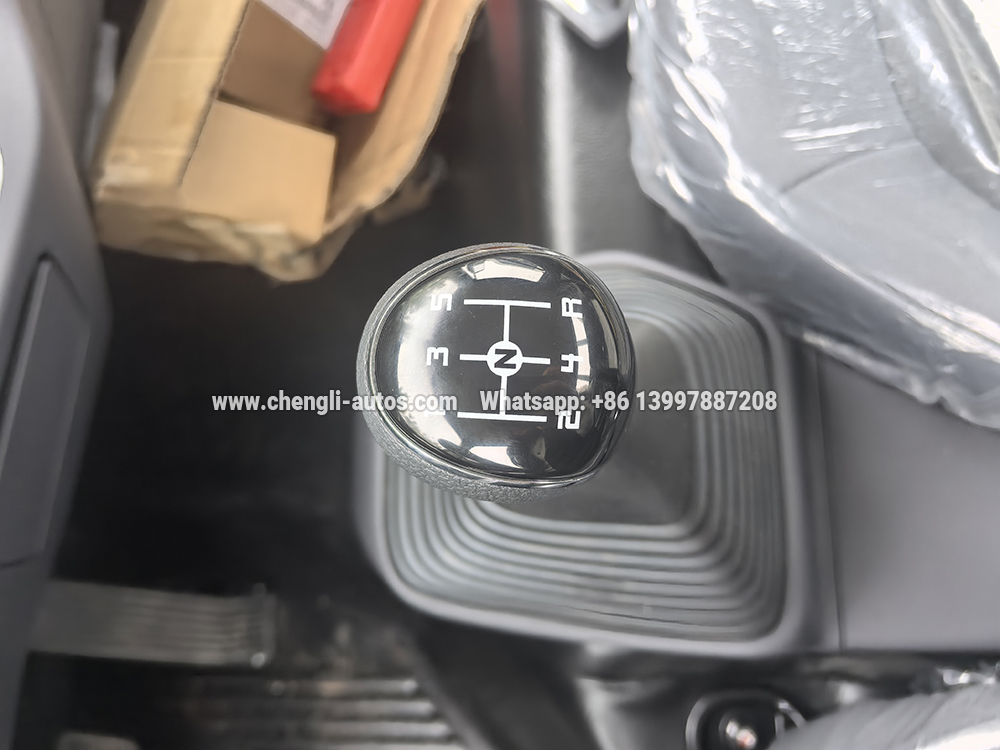

5-speed forward with 1-reverse

Tire

7.00R16 tires, 7 pcs including one spare tire.

Box size

3700/4100*1900*400mm



JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
JMC T822 Carrying Plus Light Cargo Truck(3~5T)
