Loading capactity:
5 tonsMin. order quantity:
1 unitDelivery time:
25 days after we received the depositShipping :
ContainerShipping port:

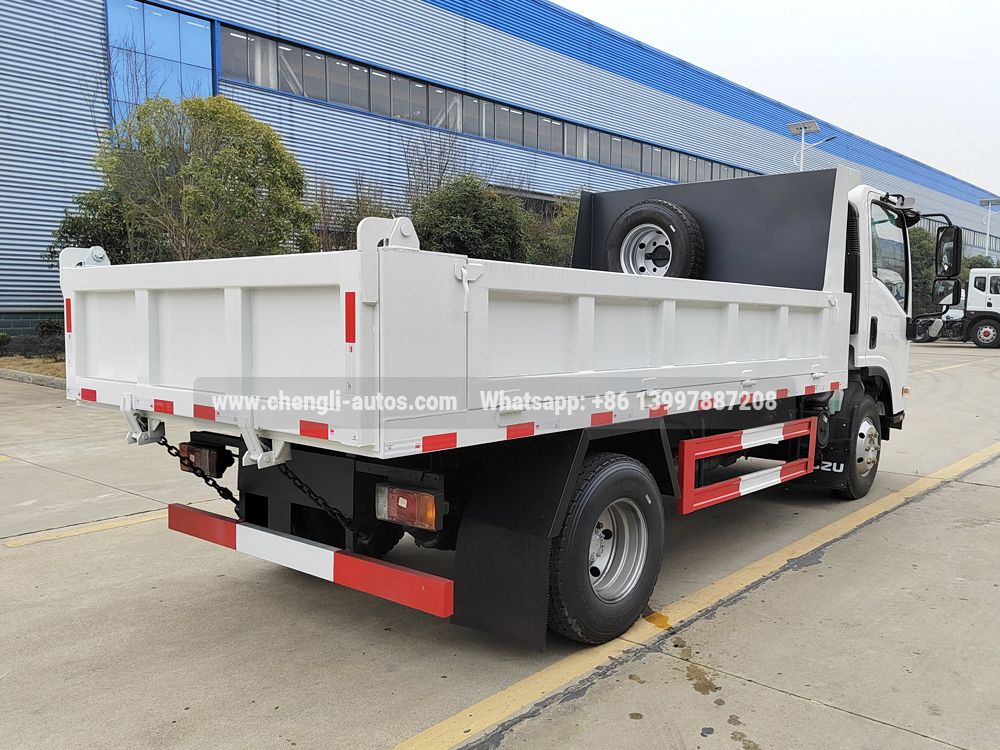

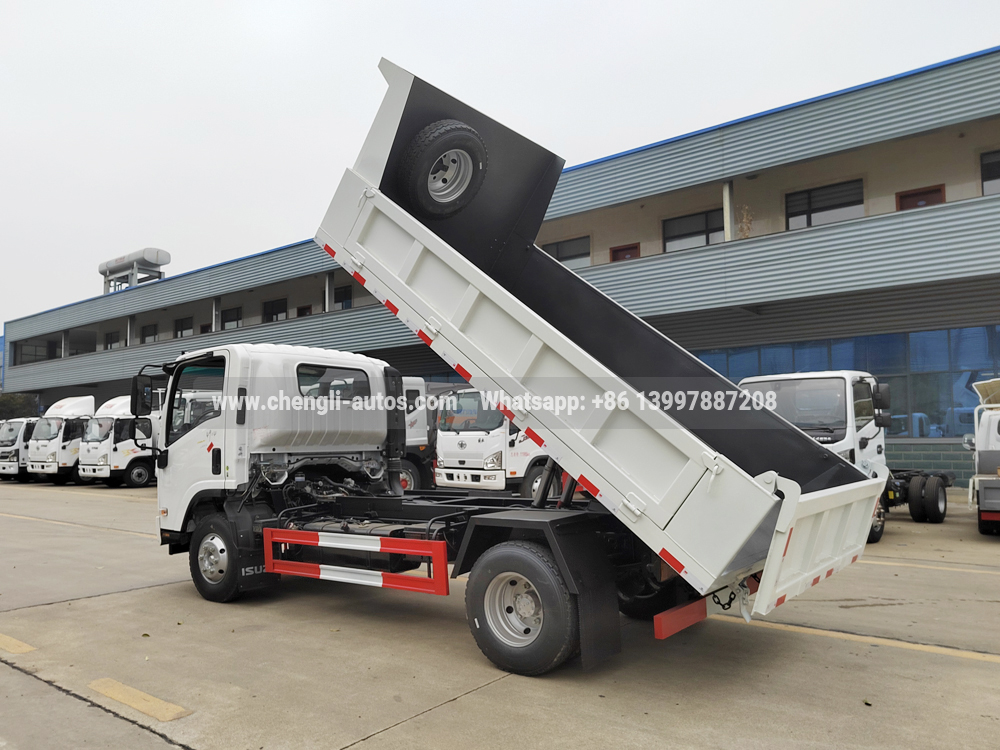

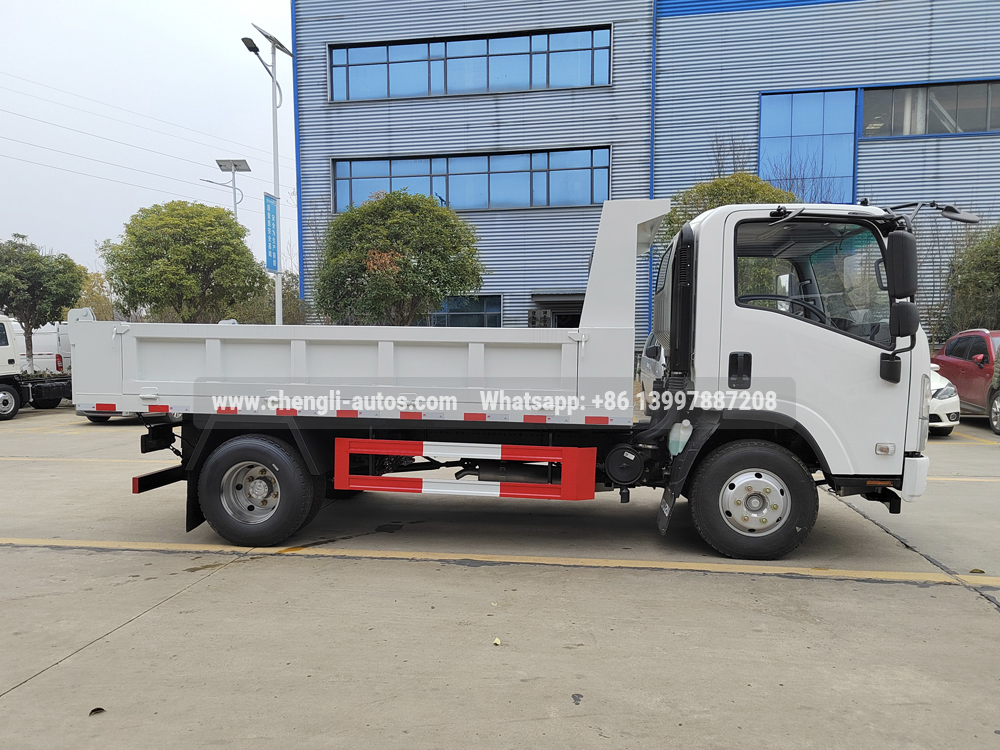

Any main port in ChinaISUZU KV100 4tons mini dump truck
ISUZU 4×2 light dump truck (also called ISUZU 6 wheeler mini tipper, light construction dump truck, samll lorry dump truck).
Application:
Rear dump trucks, also known as rear tipping trucks or rear tipper trucks, are vehicles designed for transporting heavy loads, such as sand, stone, construction items ect.They feature a back part that can be raised at one end to facilitate the unloading of contents. These trucks, equipped with hydraulic cylinders driven by the engine, are commonly used in urban waste management, construction, mineral transportation, and other industries..
Specifications:
ISUZU KV100 4x2 4tons dump truck | ||
Condition | 4X2, New condition, Left Hand Drive | |
Chassis | Brand | ISUZU |
GVW | 7000kg | |
Curb weight | 3000kg | |
Loading weight | 4ton | |
Wheelbase(mm) / No.of | 3360 / 2 axles | |
Dimension(mm) | 5900×1920×2250 | |
Axle load(front/rear) | 2000/4800kg | |
Max driving speed(km/h) | 100 | |
Tire | 7.00R16 12 PR,6+1 | |
Paint | Automotive metallic paint | |
Cab | Single row cab, 2 passengers allowed, with Air Conditioner, with FM | |
Engine | Model | 4KH1CN6LB or 4KH1CN6HB |
Fuel type | Diesel | |
Displacement (ml) | 2999 | |
Max Horsepower (hp) | 120HP/88kw or 132HP/97kw | |
Maximum torque (N.m) | 290 | |
Cylinder number | Inline 4 cylinder | |
Emission standard | Euro VI | |
Break | Air break system | |
Transmission | ISUZU 5 Forward gear + 1 Reverse,manual | |
| ||
Cargo body | Size (L×W×H) | 4000×1880×400mm |
Loading capacity | 4 tons | |
Material | Q345/B High Tension Steel. | |
Thickness | Rear&bottom 4mm, side & front 3mm | |
Tipping hydraulics | Type | Middle Tipping |
Brand | Chinese brand | |
Tipping Angle | 45° | |
Tipping Control | By the lever in the cab | |
Color and Logo | Optional | |
▲ Our History
Established in Sep. 2004,Hubei Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB（14 millions US Dollars) and total capital 6,000,000,000（840 millions US Dollars).
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
▲ Our Certificate
The "CLW" brand is honored as the "Hubei Well-kown Trademark",Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection,Pressure Vessels certificated by A2 C2 C3 , ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd.tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for
Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.
▲ Overseas Market
Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
▲ Production Equipment
Hubei Chengli Special Automobile Co., Ltd is equipped with 750 sets of large equipment and 16 assembly production lines. The testing methods are complete with various types of testing equipment such as universal hydraulic tensile testing machine, low-temperature impact testing machine, far-infrared high-frequency carbon and sulfur analyzer, four-ten thousand imported electronic balances, 1,200 times the gold Mirror microscope, digital ultrasonic flaw detector, industrial X-ray flaw detector, imported thickness gauge, water pressure, pneumatic equipment. Hubei Chengli can carry out various physical and chemical tests, pressure tests, non-destructive testing of A2, C2 pressure vessel projects and equipped with heat treatment and flaw detection room. There are more than 30 senior and middle-level testing qualification personnel,national and provincial special equipment inspection experts for technical guidance and quality supervision and inspection, which guarantees the reliability and safety of trucks.
▲ Our Service
Before purchasing:
1-Quick reply on customers' inquiry;
2-Professional suggestion on truck choice according to different countries.
3-Details quotation with spec.and reasonable price.
4-Welcome to visit our company before purchasing.
After purchasing:
1-Production pictures and video updated every week.
2-Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1-English Operation Video
2-Free operation and technical train at factory but not include accommodation
3-Spare parts supplied at factory price whenever needed.
4-Engineers can be sent to your country and offer local engineering support and train.
