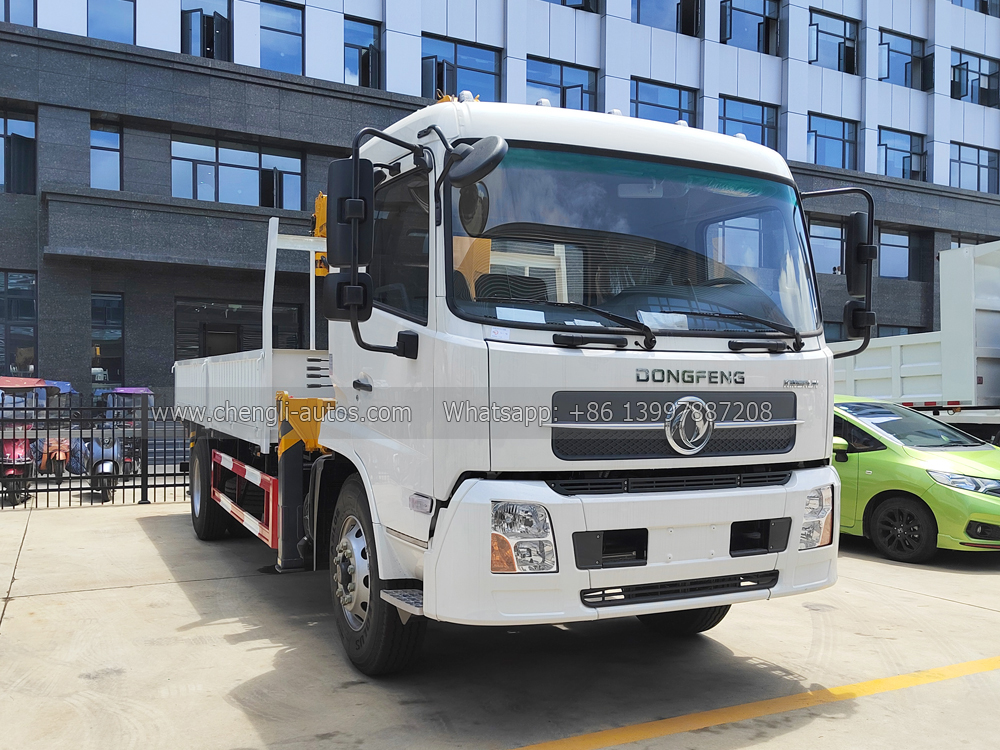

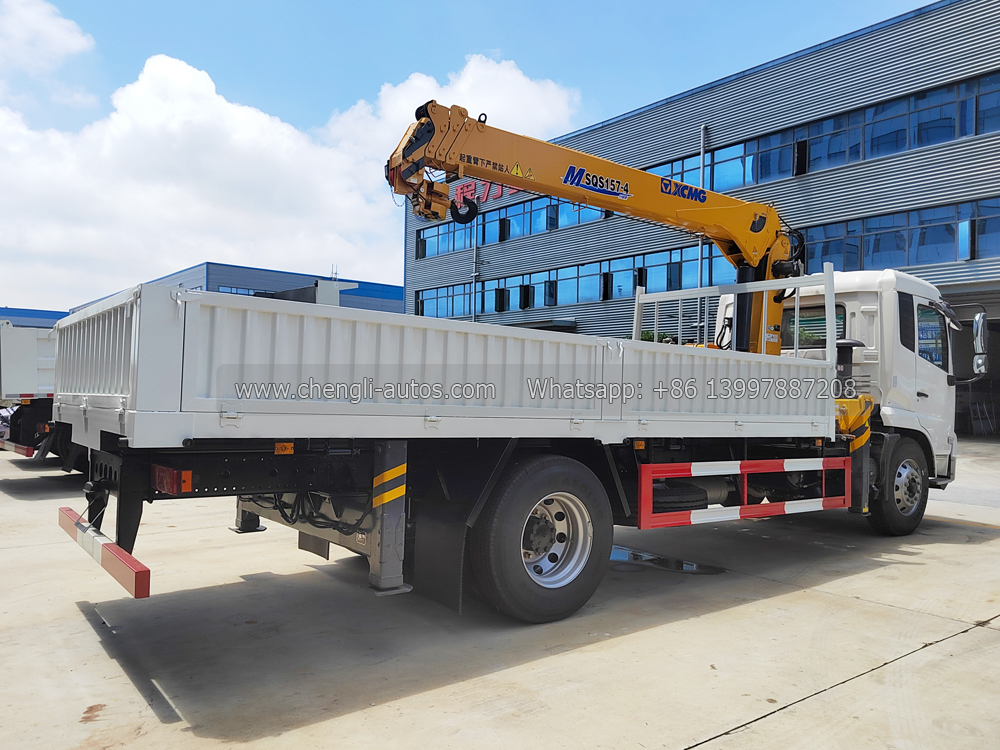

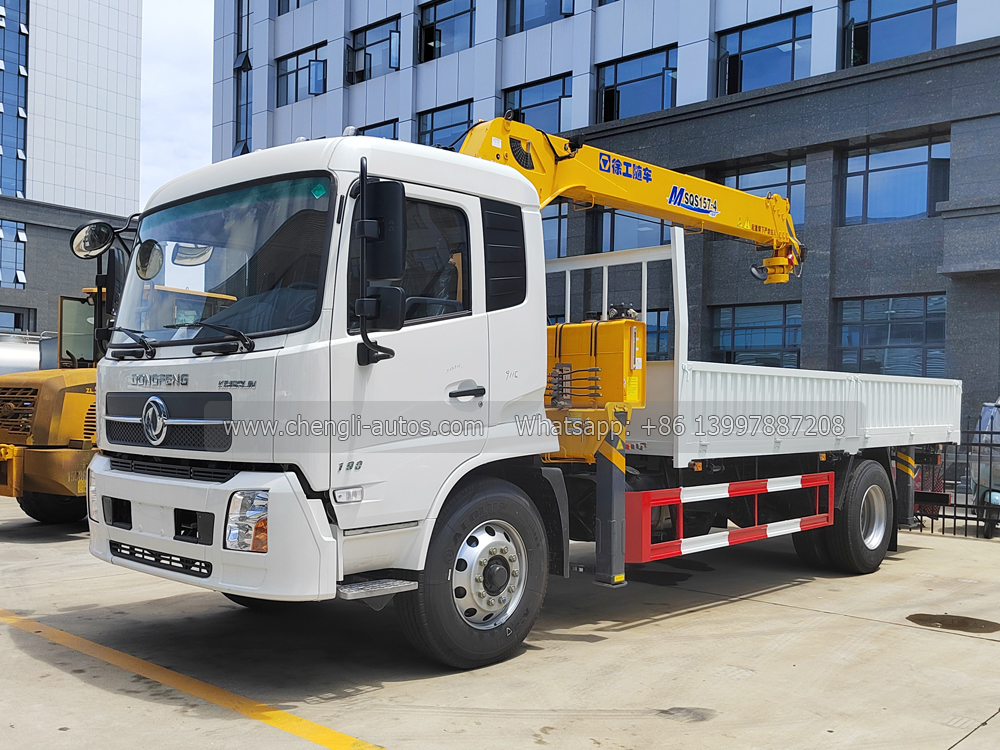

Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons

10tons Dongfeng truck with crane, Dongfeng 4x2 chassis, FAST 8-shift manual gearbox, CUMMNS 190HP diesel engine, cargo body size is optional, painting and logos depend on requirements.

  • Drive form:

    4x2
  • Engine model:

    B190 33
  • crane type:

    Straight arm or folding arm
  • Lead time:

    30 working days

Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons


Application:

Dongfeng Truck Mounted XCMG Crane (also called XCMG boom crane, Dongfeng cargo truck with crane, SQS157-4 crane truck, truck mounted knuckle crane, XCMG 6.3 tons crane truck, truck cargo with loader, XCMG crane on truck chassis, 4×2 truck mounted crane, which is used to lift the cargo, load, transport and unload heavy stuff.


Product Features:

---- Dongfeng chassis ensures perfect performance on driving.
---- CUMMINS engine, super powerful, no overhaul within 100,000 km.
---- High strength cargo body, nice shape and rational structure.
---- Easy operation and easy maintenance.
---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space.


XCMG 6.3 tons crane truck (XCMG 157-4)
GeneralVehicle BrandCLW
Chassis BrandDongfeng
Overall Dimension8900 * 2500 * 3500 mm
GVW / Kerb Weight18,000kg / 8,900kg
CabCab Capacity2 persons allowed
Air ConditionerHeating/cooling air conditioner
EngineFuel TypeDiesel
Engine BrandCUMMINS
Power190 HP (139 KW)
Displacement5900 ml
Emission StandardEuro 3
ChassisDrive Type4X2
Transmission6 speed forward with 1 reverse
Wheelbase/No. of axle4500 mm / 2
Tire Specification10.00R20
Tire Number6 tires and 1 spare tire
Max Speed90 km/h
PaintMetallic paint
SuperstructureCargo Box Dimension5600*2300*600 mm
Crane TypeXCMG 6.3 tons knuckle boom crane
Max Lifting Capacity6300 kg
Slewing Angle360° All rotation
Crane Weight2400 kg
Installation Space900 mm
Control panelEnglish or Your language
All standard accessories: Basic tool kit, English manual……
Optional** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to requirement.
** Box height could be nominated
** Remote Control Box optional


Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons
Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons
Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons
Dongfeng 4x2 truck mounted crane 5 tons/6.3 tons

▲ Our History

Established in Sep. 2004,Hubei Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).


Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.


With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..

2019_09_07_08_51_IMG_8756


▲ Our Certificate

The "CLW" brand is honored as the "Hubei Well-kown Trademark",Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015,ISO14001-2005,OHSAS18001, CCC, Automobile Energy Saving and Environment Protection,Pressure Vessels certificated by A2 C2 C3 , ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier,such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd.tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for

Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.

4


▲ Overseas Market

Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.

4


▲ Production Equipment

Hubei Chengli Special Automobile Co., Ltd is equipped with 750 sets of large equipment and 16 assembly production lines. The testing methods are complete with various types of testing equipment such as universal hydraulic tensile testing machine, low-temperature impact testing machine, far-infrared high-frequency carbon and sulfur analyzer, four-ten thousand imported electronic balances, 1,200 times the gold Mirror microscope, digital ultrasonic flaw detector, industrial X-ray flaw detector, imported thickness gauge, water pressure, pneumatic equipment. Hubei Chengli can carry out various physical and chemical tests, pressure tests, non-destructive testing of A2, C2 pressure vessel projects and equipped with heat treatment and flaw detection room. There are more than 30 senior and middle-level testing qualification personnel,national and provincial special equipment inspection experts for technical guidance and quality supervision and inspection, which guarantees the reliability and safety of trucks.

Production Line


▲ Our Service

Before purchasing:

1-Quick reply on customers' inquiry;

2-Professional suggestion on truck choice according to different countries.

3-Details quotation with spec.and reasonable price.

4-Welcome to visit our company before purchasing.

After purchasing:

1-Production pictures and video updated every week.

2-Customer can visit factory after truck completion or arrange third party inspection.

After-sales service:

1-English Operation Video

2-Free operation and technical train at factory but not include accommodation

3-Spare parts supplied at factory price whenever needed.

4-Engineers can be sent to your country and offer local engineering support and train.

8

▲ Welcome to visit our company in Suizhou city, hubei province,China

5
